Year: 2017
Made with: Rhinoceros, Grasshopper
Third year technology studio project.
Instructor: Arch. Moti Bodek
Team: Noy Ilan, Tom Szwec
The new Israeli Public Broadcasting Corporation, Kan, gets a portable news studio to be the first to cover any item and to demonstrate its presence in planned major events.
Portable studios help news channels see and to be seen. Transported and assembled at olympic sites, election centers and public demonstrations, these portable structures function as a commercial for news channels while making it easier to interview key people and VIPs at events.
In this project we designed the studio functionally, visually and structurally, while simulating each step needed to fabricate and assemble it, using 3d computer models and a physical model.
Door Detail

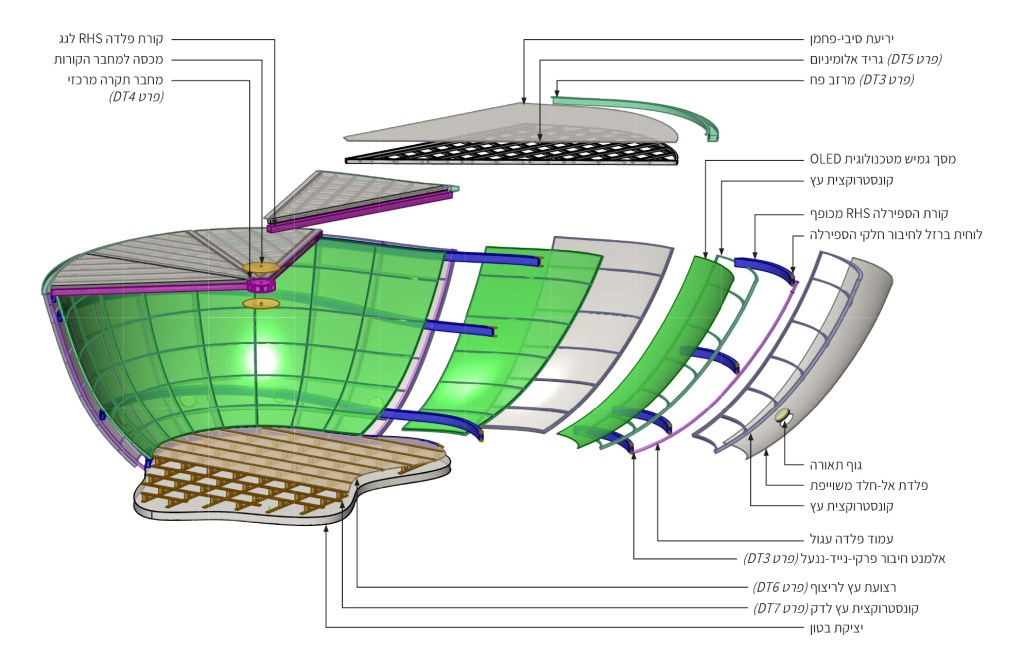

Isometric Section
Roof Detail

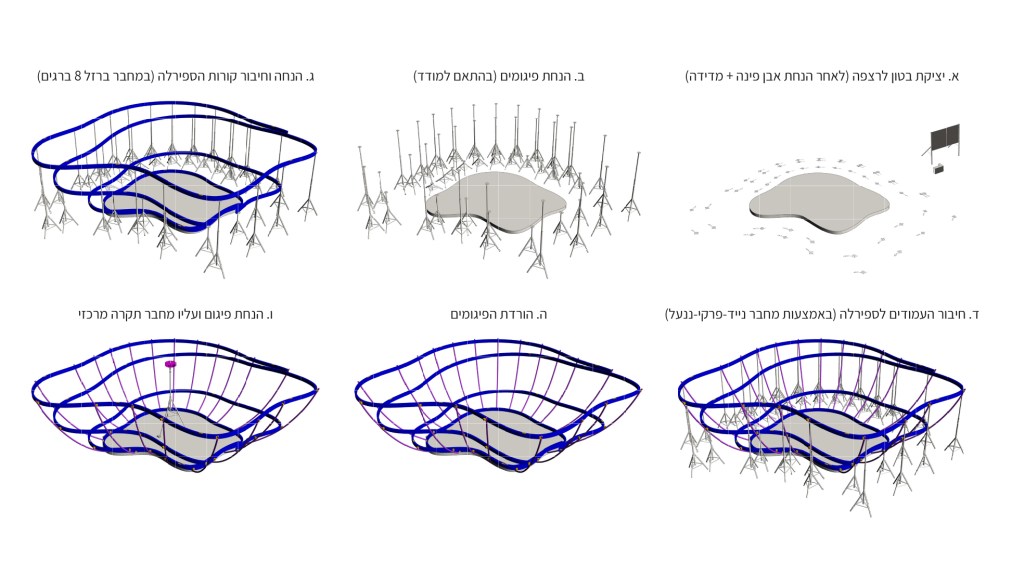

Assembly Instructions p1
Assembly Instructions p2
Structural Proof of Concept
Mid Construction

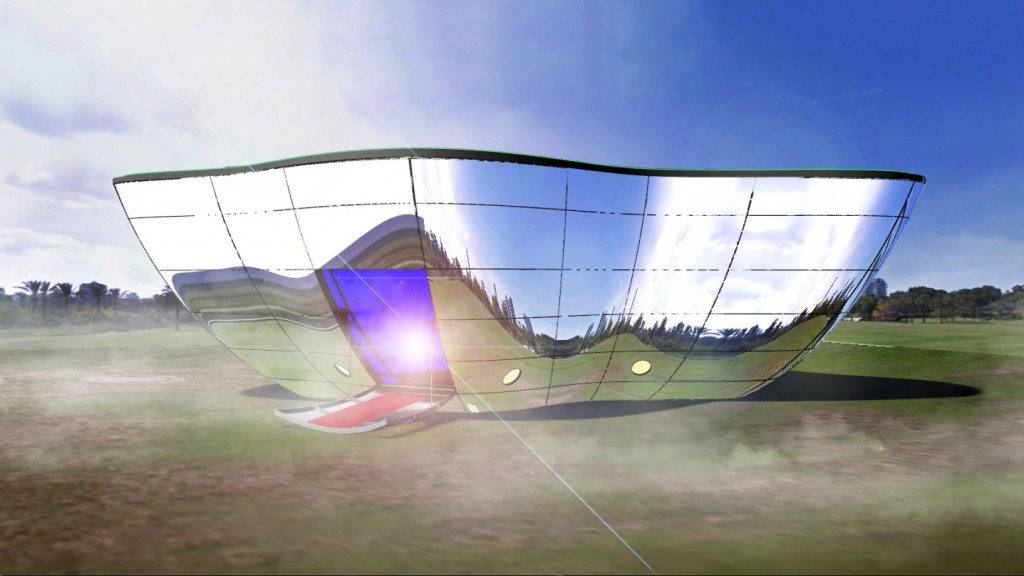

Kan Portable Studio Rendering
